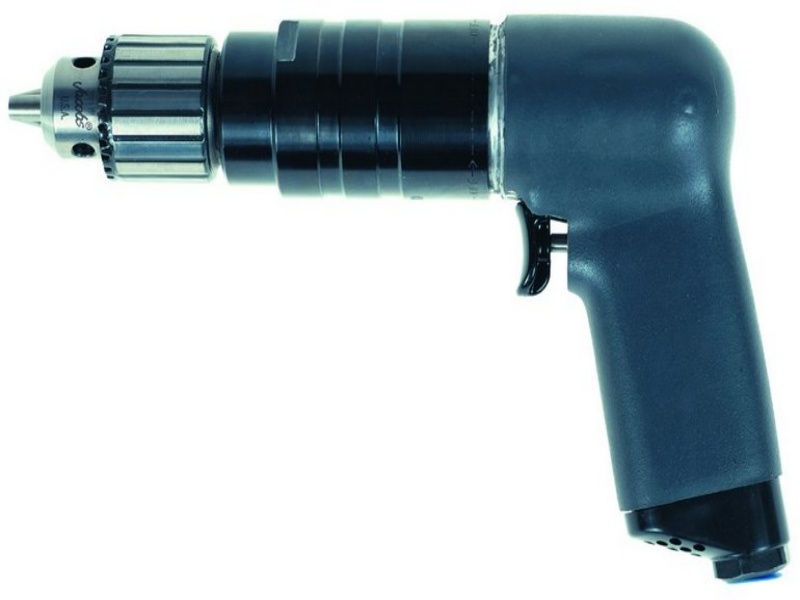

The 7 Series Air Drills are engineered for enduring performance and designed with a modular build for economical maintenance, making them an excellent addition to any toolkit. Experience the seamless operation with double row ball bearings ensuring concentric holes and meticulous attention to detail. Built to thrive in tough conditions, the 7 Series showcases resilience with its superior materials and construction. Its power-to-weight ratio and variable speed control, promises a comfortable and controlled drilling experience so you can achieve reliable results every time.
Item No :
7 Series Air Drill Pistol GripOrder(MOQ) :
1 pcPayment :
T/TProduct Origin :
ChinaColor :
blackShipping Port :
XiamenLead Time :
15 daysWeight :
0.71The 7 Series Air Drills are engineered for enduring performance and designed with a modular build for economical maintenance, making them an excellent addition to any toolkit. Experience the seamless operation with double row ball bearings ensuring concentric holes and meticulous attention to detail. Built to thrive in tough conditions, the 7 Series showcases resilience with its superior materials and construction. Its power-to-weight ratio and variable speed control, promises a comfortable and controlled drilling experience so you can achieve reliable results every time.
Reliable Performance: Trust in the 7 Series Pistol Drills to deliver consistent and precise results, enhancing your productivity and work quality.
Maintenance: Benefit from the interchangeable parts and modular design that make upkeep straightforward and cost-effective.
Precision Drilling: Equipped with double row ball bearings for exact drilling, these tools allow for the creation of the finest details with ease.
Robust Durability: Constructed to withstand rigorous environments, the drills are made from high-quality materials, ensuring longevity and resilience.
| Model | Actuation | Reversible | Max. Working Torque (in-lb) | Max. Working Torque (Nm) | Free Speed (rpm) | Weight with Chuck (lb) | Weight with Chuck (kg) |
| 7ADST4 | Trigger Start | No | 10 | 1.1 | 20000 | 2.1 | 1 |
| 7AHST4 | Trigger Start | No | 33 | 3.7 | 6000 | 2.3 | 1.1 |
| 7AJST4 | Trigger Start | No | 40 | 4.5 | 4800 | 2.3 | 1.1 |
| 7AJJST4 | Trigger Start | No | 47 | 5.5 | 4000 | 2.3 | 1.1 |
| 7AKST6 | Trigger Start | No | 58 | 6.6 | 3200 | 2.4 | 1.1 |
| 7ALST6 | Trigger Start | No | 78 | 8.8 | 2400 | 2.7 | 1.2 |
| 7AMST6 | Trigger Start | No | 1301 | 14.7 | 1400 | 2.9 | 1.3 |
| 7ANST8 | Trigger Start | No | 185 | 20.9 | 900 | 3.2 | 1.5 |
| 7AQST8 | Trigger Start | No | 269.9 | 30.5 | 600 | 3.2 | 1.5 |
| Model | Length with Chuck (in) | Length with Chuck (mm) | Bit Holder Capacity (in) | Bit Holder Capacity (mm) | Side to Center (in) | Side to Center (mm) | Sound Level dB(A) | Rated Power (hp) | Air Inlet | cfm |
| 7ADST4 | 7.4 | 189 | 1/4 | 6 | 0.9 | 22 | 82 | 0.75 | 1/4 in. NPT | 25 |
| 7AHST4 | 7.4 | 189 | 1/4 | 6 | 0.9 | 22 | 82 | 0.75 | 1/4 in. NPT | 25 |
| 7AJST4 | 7.4 | 189 | 1/4 | 6 | 0.9 | 22 | 82 | 0.75 | 1/4 in. NPT | 25 |
| 7AJJST4 | 7.4 | 189 | 1/4 | 6 | 0.9 | 22 | 82 | 0.75 | 1/4 in. NPT | 25 |
| 7AKST6 | 7.6 | 194 | 3/8 | 10 | 0.9 | 22 | 82 | 0.75 | 1/4 in. NPT | 25 |
| 7ALST6 | 7.8 | 198 | 3/8 | 10 | 0.9 | 22 | 82 | 0.75 | 1/4 in. NPT | 25 |
| 7AMST6 | 8.5 | 216 | 3/8 | 10 | 0.9 | 22 | 82 | 0.75 | 1/4 in. NPT | 25 |
| 7ANST8 | 8.7 | 222 | 1/2 | 13 | 0.9 | 22 | 82 | 0.75 | 1/4 in. NPT | 25 |
| 7AQST8 | 8.7 | 222 | 1/2 | 13 | 0.9 | 22 | 82 | 0.75 | 1/4 in. NPT | 25 |
