Ingersoll Rand

Non-Shutoff Air Pulse Tools clock in at 4,000 to 9,300 RPM excellent power speed accuracy and ergonomics

Our Non-Shutoff Pulse Tools are recommended for jobs where speed and ergonomics are important. These tools offer a lube-free, dual chamber air motor, along with self-lubricating blades.

Item No :
Non-Shutoff Air Pulse Tools
Order(MOQ) :
1 pc
Payment :
T/T
Product Origin :
China
Color :
black
Shipping Port :
Xiamen
Lead Time :
15days
Weight :
0.71

Inquiry now

Product Details
Model Specifications

Ingersoll Rand offers a full line of transducerized and standard shutoff and non-shutoff pulse tools in pistol, angle and in-line configurations to meet your needs. These extremely lightweight, reactionless tools offer excellent power, speed, accuracy and ergonomics.

Our Non-Shutoff Pulse Tools are recommended for jobs where speed and ergonomics are important. These tools offer a lube-free, dual chamber air motor, along with self-lubricating blades.

Comfortable
Enhanced ergonomics and low vibrations provide maximum operator comfort.

Speedy
With an enhanced power-to-weight ratio, the Non-Shutoff Pulse Tools clock in at 4,000 to 9,300 RPM.

Reliable
These tools provide consistent output every time they're used.

Model	Configuration	Common Fastener Size	Torque Range (Nm)	Torque Range (ft-lb)	Free Speed (rpm)	Hard Slam Torque Range (Nm)	Soft Draw Torque Range (Nm)
140P6	Pistol	M16	160 - 270	118 - 199	3200	NA	NA

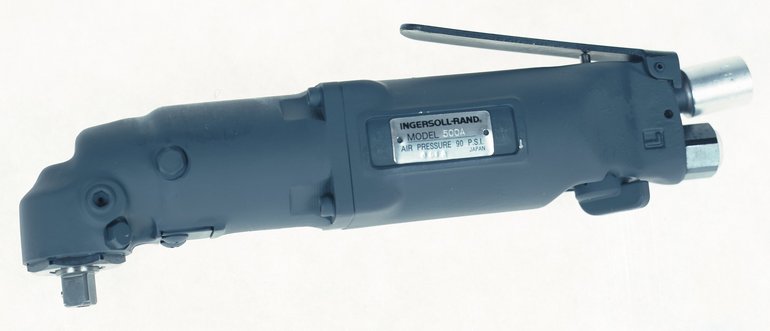

500A	Angle	M6 - M8	29 - 39	21 - 29	7000	30-41	16-33
Q110P4	Pistol	M10 - M12	60 - 95	44-70	5500	NA	NA
Q120P4	Pistol	M12	95 - 130	70 - 95	6600	NA	NA
Q60P3	Pistol	M6	13 - 22	10-16	4000	NA	NA
Q60PQ1	Pistol	M6	11-20	8-15	4000	NA	NA
Q70P3	Pistol	M6 - M8	24- 35	18 - 25	7000	NA	NA
Q70PQ1	Pistol	M6 - M8	20 - 28	15 - 20	7000	NA	NA

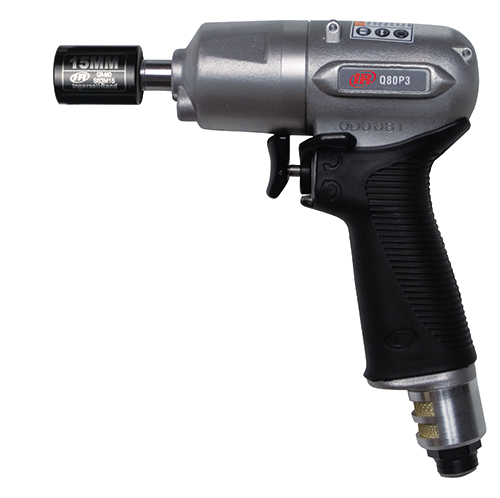

Q80P3	Pistol	M8	34 - 50	24 - 37	7000	NA	NA

Model	Weight (kg)	Weight (lb)	Length (mm)	Length (in)	Side to Center (mm)	Side to Center (in)	Drive Size/Style	Air Consumption (cfm)
140P6	3.1	6.8	226	8.9	36	1.4	3/4 in. Square	26
500A	1.5	3.3	267	10.5	27	1.1	3/8 in. Square	11
Q110P4	1.4	3	164	6.5	27	1.1	1/2 in. Square	20
Q120P4	1.7	3.7	175	6.9	29	1.3	1/2 in. Square	20
Q60P3	2.2	4.9	190	7.5	33	1.3	1/2 in. Square	30
Q60PQ1	0.8	1.8	130	5.1	22	0.9	1/4 in. Quick Change	11
Q70P3	0.8	1.8	130	5.1	22	0.9	3/8 in. Square	11
Q70PQ1	0.8	1.8	131	5.2	22	0.9	1/4 in. Quick Change	12
Q80P3	0.9	1.9	138	5.4	22	0.9	3/8 in. Square	12
