Ingersoll Rand

Shutoff Air Pulse Tools easy to handle 4,000 to 7,000 RPM

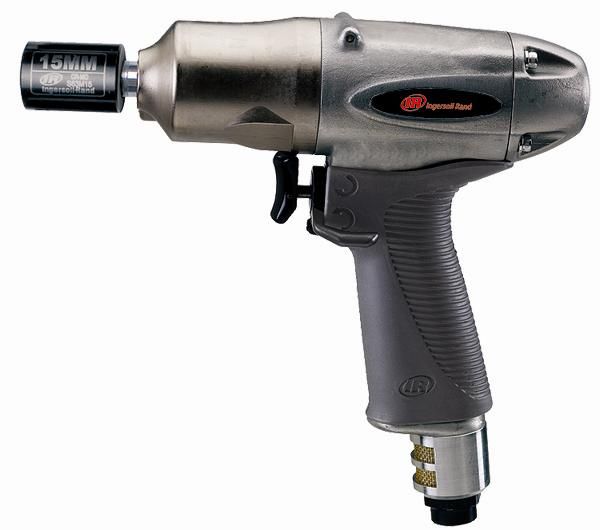

The Shutoff Pulse Tools are compact, with a lightweight design that makes them easy and comfortable to use all day long. These tools also come with an auto-shutoff feature that stops airflow to the tool when the cycle is complete, which limits air consumption and tool wear and deters early throttle release.

Item No :
Shutoff Air Pulse Tools
Order(MOQ) :
1 pc
Payment :
T/T
Product Origin :
China
Color :
black
Shipping Port :
Xiamen
Lead Time :
15 days
Weight :
0.71

Inquiry now

Product Details
Model Specifications

Ingersoll Rand offers a full line of transducerized and standard shutoff and non-shutoff pulse tools in pistol, angle and in-line configurations to meet your needs. These extremely lightweight, reactionless tools offer excellent power, speed, accuracy and ergonomics.

The Shutoff Pulse Tools are compact, with a lightweight design that makes them easy and comfortable to use all day long. These tools also come with an auto-shutoff feature that stops airflow to the tool when the cycle is complete, which limits air consumption and tool wear and deters early throttle release.

Comfortable
The Shutoff Pulse Tools offer an ergonomic, lightweight design that makes them easy to handle and increases operator comfort.

Speedy
These tools provide an impressive 4,000 to 7,000 RPM.

Durable
The Shutoff Pulse Tools offer high-speed, reactionless fastening to help you breeze through every job.

Model	Configuration	Common Fastener Size	Torque Range (Nm)	Torque Range (ft-lb)	Free Speed (rpm)	Hard Slam Torque Range (Nm)	Soft Draw Torque Range (Nm)	Weight (kg)
QS110P4	Pistol	M10 - M12	50-85	37-64	5800	NA	NA	1.51
QS120P4	Pistol	M12	70-115	52-85	5400	NA	NA	1.8
QS140P4	Pistol	M14	110-150	81-111	5200	NA	NA	3
QS150P6	Pistol	M16	77-177	103-155	4400	NA	NA	0.95
QS50P3	Pistol	M5	4.5-8	3-6	4300	NA	NA	0.95
QS50PQ1	Pistol	M5	4.5-8	3-6	4300	NA	NA	1.1
QS60P3	Pistol	M6	7-15.5	5.1-11.4	5300	NA	NA	1
QS60PQ1	Pistol	M6	6-13	4.4-9.6	5300	NA	NA	1.1
QS70P3	Pistol	M6-M8	15-32	11.1-23.6	6800	NA	NA	1.1
QS70PQ1	Pistol	M6-M8	13-28	9.6-20.7	6800	NA	NA	1.1
QS80P3	Pistol	M8	30-55	22.1-40.6	6800	NA	NA	1.1

Model	Length (mm)	Length (in)	Side to Center (mm)	Side to Center (in)	Drive Size/Style	Air Consumption (cfm)
QS110P4	194	7.6	57	2.2	1/2 in. Square	17.7
QS120P4	194	7.6	57	2.2	1/2 in. Square	18.4
QS140P4	201	7.9	62	2.4	1/2 in. Square	25
QS150P6	237	9.3	39	1.5	3/4 in. Square	25
QS50P3	164	6.5	23	0.9	3/8 in. Square	8.9
QS50PQ1	164	6.5	23	0.9	1/4 in. Quick Change	8.9
QS60P3	164	6.5	23	0.9	3/8 in. Square	12
QS60PQ1	164	6.5	23	0.9	1/4 in. Quick Change	12
QS70P3	177	7	23	0.9	3/8 in. Square	12
QS70PQ1	177	7	23	0.9	1/4 in. Quick Change	13
QS80P3	187	7.4	25.4	1	3/8 in. Square	16
